A Multi Criteria Decision Support System for Capacity Assessment of Railway Infrastructure

[ Home | Top ][ Motivation | Principle | Software | References | Contacts | Acknowledgment ]


The development and the success of high speed trains, conjugated with the saturation of roads in and around large cities, are two factors boosting the renewed interest for the railway transportation. Additionally, the many advantages of train for sustainable development favors the railway companies. Consequently the rail traffic is continuously increasing those last years in Europe. However to remain competitive, the railway companies have to improve efficiency and quality of service offered to the customers: more trains in operation, less trains delayed.

As in many European countries, the French railways have been separated into train operation and railway infrastructure. RFF is  the French railway infrastructure manager, while the SNCF is the historical operator with the dominant market share position in the passenger and freight railway transportation. Soon, new private and possibly low-cost operators may appear on this market. They could operate on some lines, introducing changes in passenger transportation.

Freight transportation is also concerned.  To reduce the number of trucks on the roads, the rail freight operators must offer a comparable quality of service (punctuality, reliability, flexibility, average commercial speed...) in order to increase the number of trains in operation. Consequently, a passenger or a freight train running on an infrastructure will be subject the payment of a track access charge to the infrastructure manager.

In order to implement a rail transport supply strategy, it is crucial to have operational tools for supporting the studies and the analysis of railway infrastructure development strategies. For example, tools must be able to identify the limits of an existing or future network, with one or more possible supply configurations. The central challenge for an optimal use of the infrastructure requests an appropriate measure of the railway infrastructure capacity.
[ Home | Top ][ Motivation | Principle | Software | References | Contacts | Acknowledgment ]

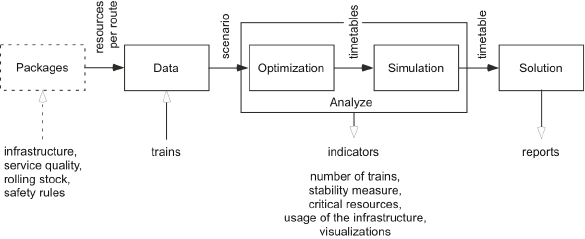

RECIFE is a Multi Criteria Decision Support Software including models and algorithms to evaluate railway infrastructure capacity. It helps decision-maker expert in railway transportation to optimize the use of the infrastructure at a microscopic level. It considers a feasibility or saturation problem and the stability of proposed timetables.

RECIFE uses Multi Criteria Decision Making methodologies within models, algorithms, and functionalities. It is now fully operational and has been implemented at the Pierrefitte-Gonesse junction and the Lille-Flandres station in order to validate the principles and the proposed algorithms in real complex railway (junction or station) environments. The core of the decision process in RECIFE integrates two models.

The optimization model aims to maximize the number of train, i.e. to optimize the timetable's feasibility and saturation objectives, as well as the objective representing DM preferences. The model to solve is then optimized with an algorithm based on the principle of metaheuristics. It returns a collection of equivalent solutions on the number of trains  scheduled. Two equivalent solutions have timetables with the same number of trains, but with different types and/or schedules.

The simulation model maximizes the stability of equivalent solutions (minimize the sum of delays). In order to assess the stability, several objectives are "dynamically" defined by the DM in order to simulate the effect of delays on solutions. The DM is focused on the efficient solutions who are representative of the best compromises. Analysis tools provided helps the DM to choose one timetable among the efficient solutions highlighted by the software.
[ Home | Top ][ Motivation | Principle | Software | References | Contacts | Acknowledgment ]


Input data, one scenario:

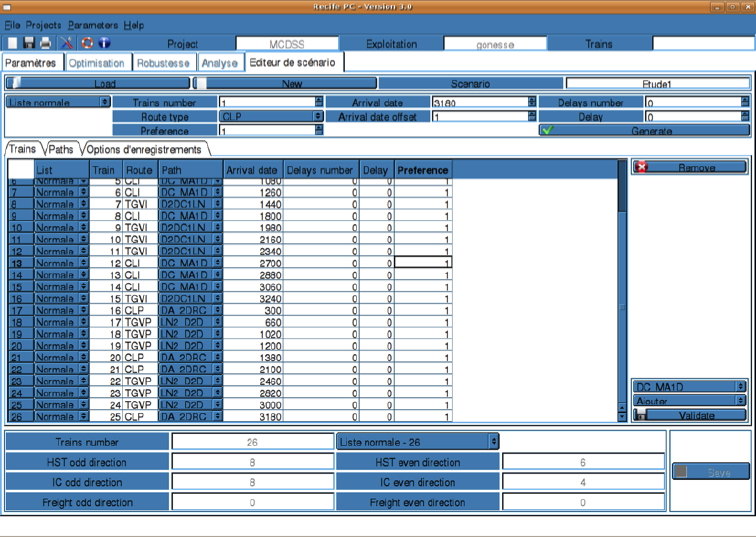

The DM defines the list of trains who are candidate to be scheduled in a timetable and their characteristics (arrival date, authorized delay, authorized routes, preferences...). On the left part of this figure, 26 passengers trains are candidates for crossing a junction.

First stage, the optimization activity:

The DM is informed by the convergence of the optimization algorithm. The figure is a screenshot of the optimization screen: X axis denotes the elapsed time, Y axis the number of trains scheduled in the solutions. The oscillation results from the restart strategy included in the algorithm. No improvement is obtained after the first restart for this example.

Second stage, the simulation activity:

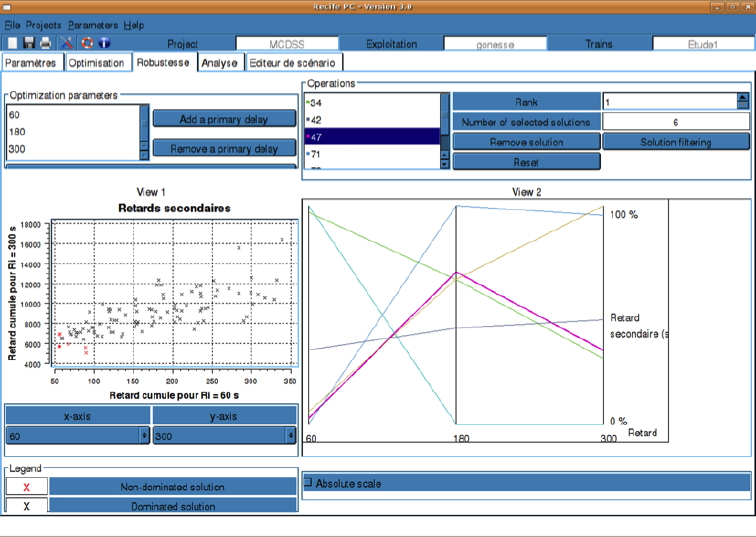

Visual tools based on MCDM concepts are provided to the DM for supporting its analysis of solutions. The figure is a screenshot of the simulation screen. Three primary delays (60, 180, 300 seconds) are defined. DM analyzes the corresponding secondary delays in a two dimensional flat view showing all the equivalent timetables (view 1, left).

With the current options, 6 timetables are efficients. Their profiles are shown for the 3 objectives (60, 180, 300) (view 2, right). DM is focusing on solution number 47 which is highlighted on views.

Data in output, a robust feasible timetable:

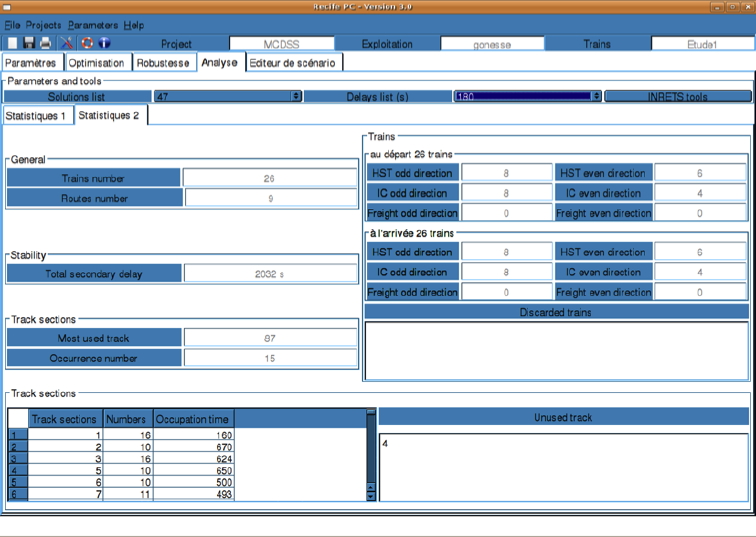

Macroscopic and microscopic quantitative information about a solution are available for supporting the analyze. Here all the 26 trains are scheduled, using 9 routes. The detail by type of train is also reported (right top). For this solution, 15 trains are using the track 87 appearing as the most often requested part of the infrastructure. The most busy track sections are also reported in term of occupation time (left bottom). Only the track section 4 is unused (right bottom) by the solution. For this solution, a primary delay of 180 seconds generates a secondary delay of 2032 seconds.

Analyse tool 1, space-time diagram:

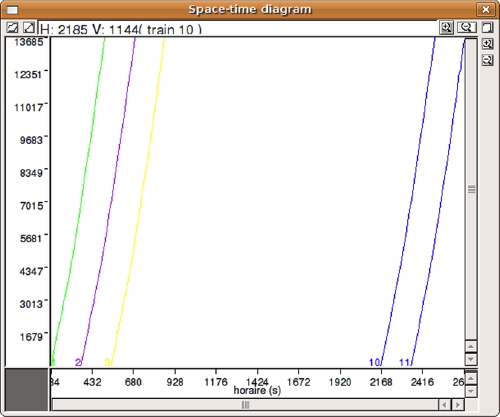

This is the common view representing a solution, where X is the time, Y the distance. Here 5 trains are scheduled on this route

Analyse tool 2, Gantt chart timetable visualization:

This view allows a detailed examination of the resources used by each train included in a solution.

Analyse tool 3, Track layout timetable animation:

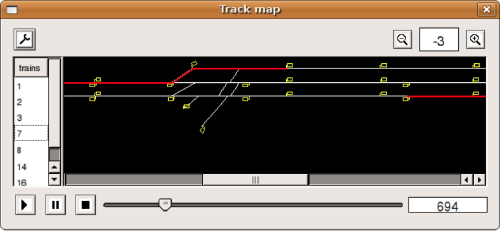

Any solution can be played allowing the DM to track a particular train. Here the train 7 is monitored by the DM.
